Product - Battery system

Battery system

Battery system up to 7.5 kW for backup power supply

Product description

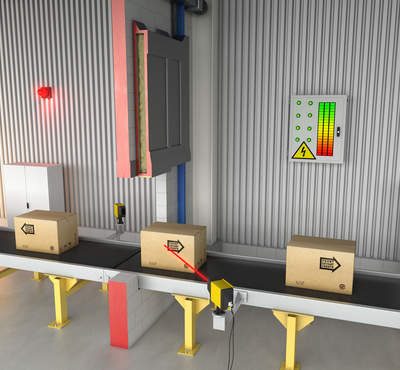

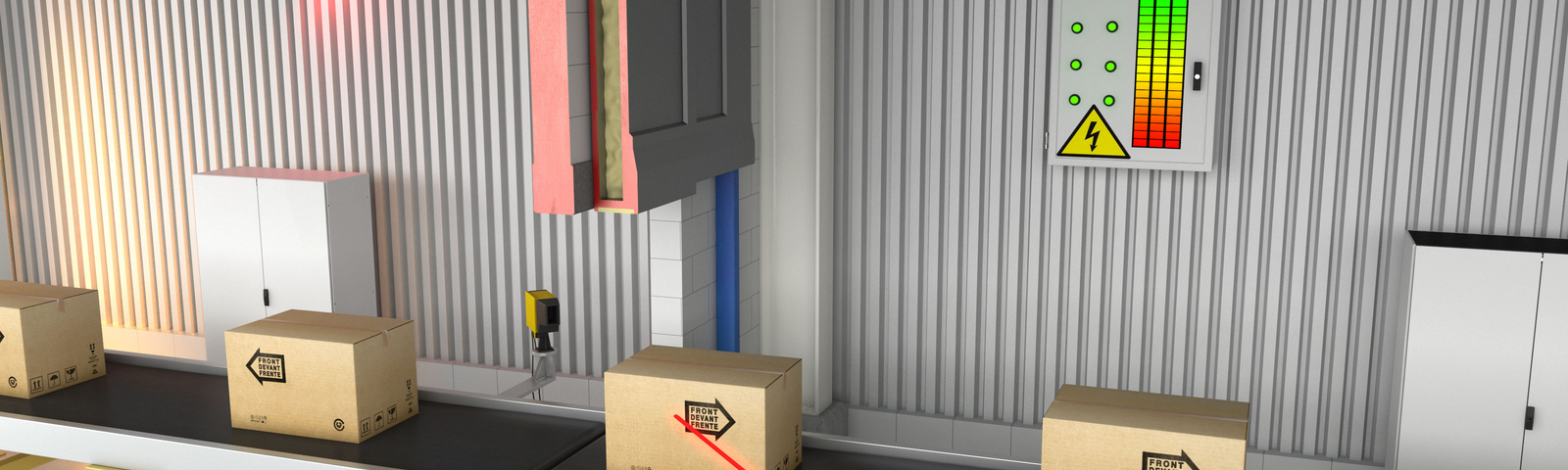

Second independent power supply for conveyor drives in the closing area of conveyor system closures. Temporary power supply of the conveyor drives in case of fire and simultaneous power failure.

Battery system

Product designation

Emergency power generation

Rated voltage

3x230V / 3x400V AC

Connected load

2.5kVA

Brake voltage

96V DC • 168V DC • 230V AC (optional)

Control voltage

24V DC

Output voltage

3x200V AC / 25Hz • 3x400V AC / 50Hz

Output power

4.0....7.5kW

Batteries UPS

26

Frequency converter

Movitrac (SEW)

Safety relay

optional

Casing (type)

Rittal AE/VX

Casing (size)

800x1000x300 mm • Larger dimensions on request

Casing (colour)

similar to RAL 7035

Degree of protection

IP 54

Ambient temperature

0°…+40°C
