SMOKESHIELD-S

  • Smokeshield-S

Product description

Rectangular and polygon-shaped floor space of the smoke apronEdge dimensions up to 16 m and drop lengths up to 6 mFor high time class and temperature loads D120 (600 ° C)No remaining openings – neither in the upper area nor in the cornersNo supporting structure required – absolutely tight even in high pressure load situationsLow installation height of the housing of approx. 125 mm and a drop length of < 3.0 mAs standard with "Gravigen" drive system i.e. closing without external energy, fire-resistant cables are not necessaryRedundant drive systems provide fall protectionAlso suitable (approved) for use as a floor-closing smoke apron.

|
TypeTextile smoke apron
Proof of usabilityCE according to DIN EN 12101-1 | UL 1784
FabricEcotex 1100 A2
VerificationZ - 56.429 - 916 (fabric) | IBS 08062415 | UB 3.3/ 10-018-1 | 0761-CPD-0060
Closing directionFrom top to bottom
Closing cyclesC
Guide typeGuide rails • without guide rails
ClassificationDH 120 | D 120 | Classification according to DIN EN 12101-1
TriggeringApproved hold-open system | To be provided on site

Downloads

Fibershield-S

Legend system components:
1 = Smoke detector
2 = Casing
3 = Side guids
4 = Tubular motor
5 = Fabric
6 = Closing element
7 = Coil
8 = Control module
9 = Control with operating unit
10 = Manual release
SL = System length

Constructive system design (System drawing)

Fabric System widthDrop length (AL)t (mm)h (mm)
Ecotex 1100 A2< 50 m< 3 m490125
Ecotex 1100 A2< 50 m> 3 m - ≤ 6 m490225
Heliotex EW 90< 50 m≤ 2,2 m490125
Heliotex EW 90< 50 m> 2,2 m - ≤ 4,5 m490225
Heliotex EW 90< 50 m> 4,5 m - ≤ 6 m490450

Closing strips

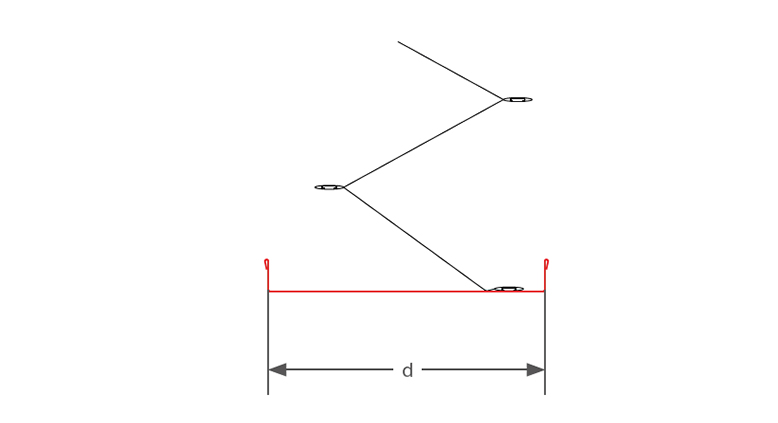

Closing strips Fibershield-S
Standard
Closing strips Fibershield-S

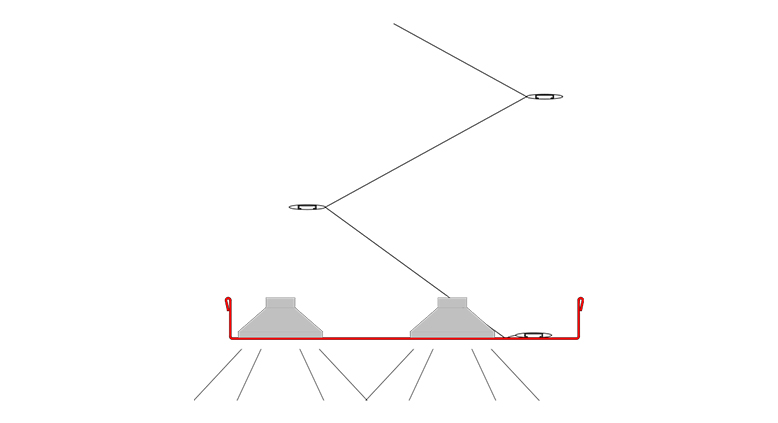

Sonder
With light spots or light strip

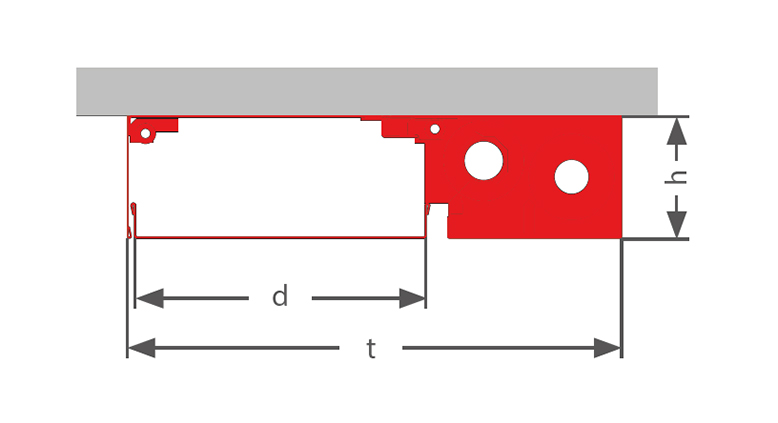

Casing

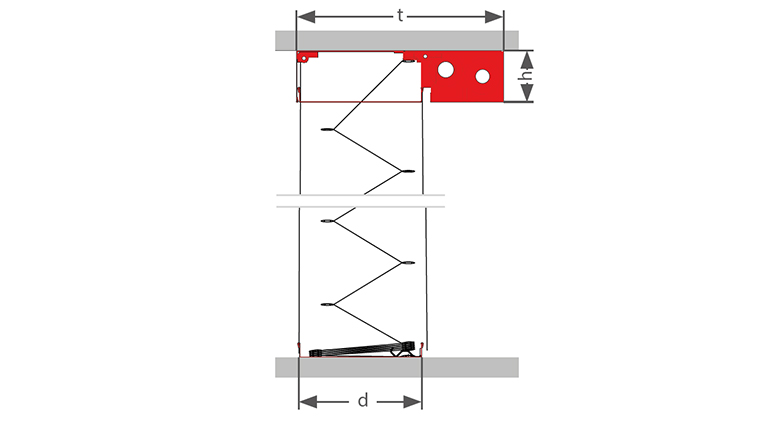

Fibershield-S Casing
Casing (open)
h = from table
t = 490 mm

d = 290 mm
Fibershield-S Casing
Locking equipment (optional)
h = 125 mm
t = 490 mm

d = 290 mm
S = Infrared fuse
