Product -

RGT

Product description

In the event of fire, the fire protection closure automatically closes a wall opening, through which conveyor lines (f.e.: interrupted or continuous Roll-, Belt- oder Carrying-Chain-Conveyors) are passing.

Closing direction

from left to right • from right to left

Re-opening

electromotive (standard)

Downloads

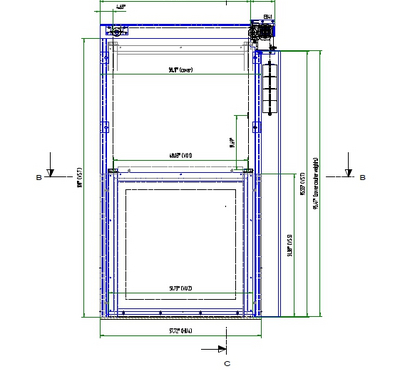

System drawing

Required wall quality

Masonry

d ≥ 175 mm

Reinforced concrete

d ≥ 140 mm

Approval range

LB

200-2500 mm

LH

200-2700 mm

Technical feasibility

LW

6000 mm

LH

5000 mm

Durability
